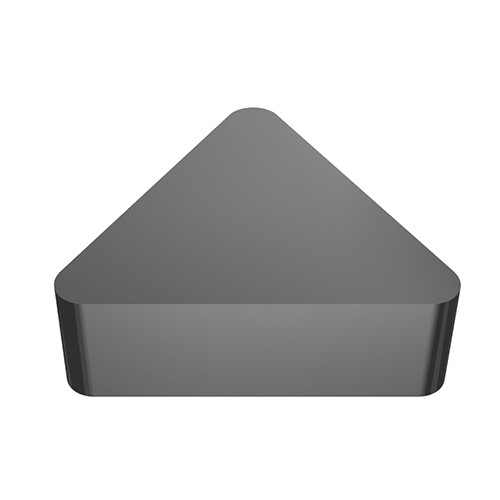

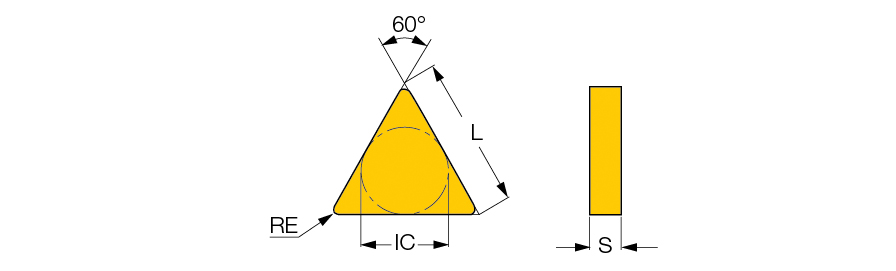

TNG 332 T0420 IN18
| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | | Min D.O.C. | 0.008″ |
| Insert Style | TNG | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 332 | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN18 |
Product Features
| Family Description | Negative 60° triangular double-sided ceramic inserts for machining hardened steel, cast iron and heat resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
