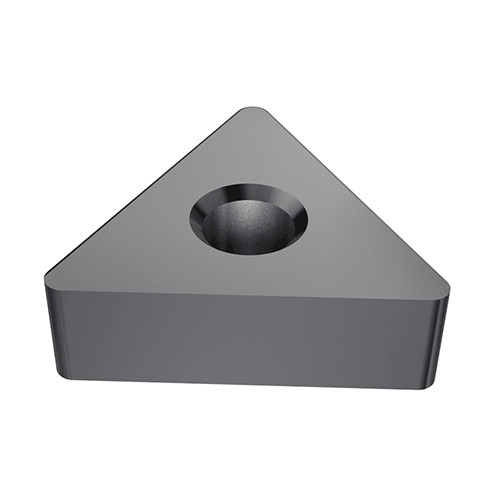

TNGA 334 T0420 IN6
| Applicable Material | | Cast Iron | | Grade | IN6 |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | TNGA | Min D.O.C. | 0.016″ |

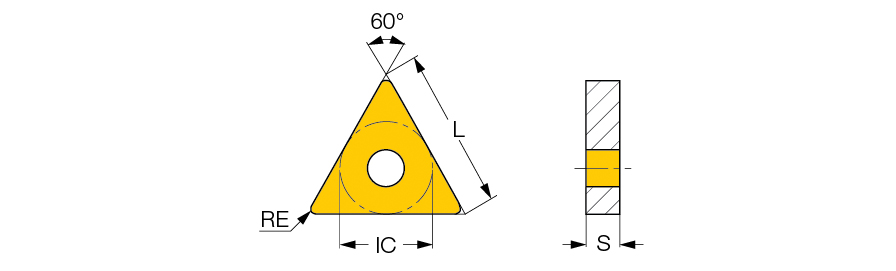

| Corner Radius (RE) | 0.063″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 334 | Min. Turning Feed (ft(min)) | 0.00236 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Negative 60° triangular double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
4.4
