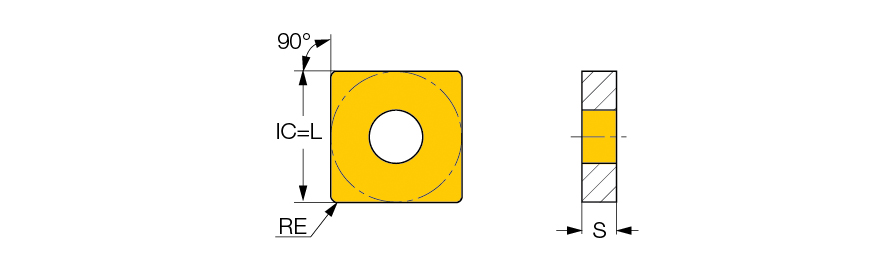

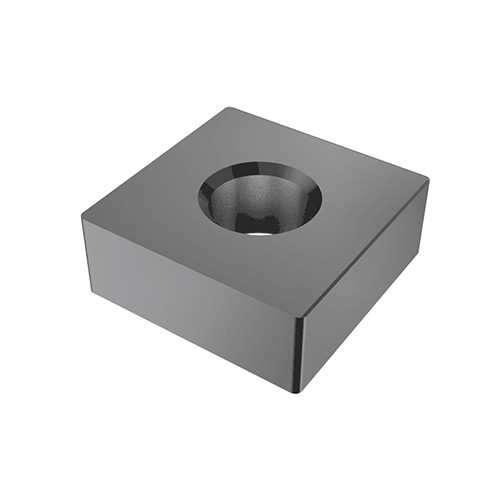

SNGA 432 T0420 IN6
| Applicable Material | | Cast Iron | | Grade | IN6 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | SNGA | Min D.O.C. | 0.008″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Negative square double-sided ceramic inserts for machining cast iron and hardened steel | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
5.3
