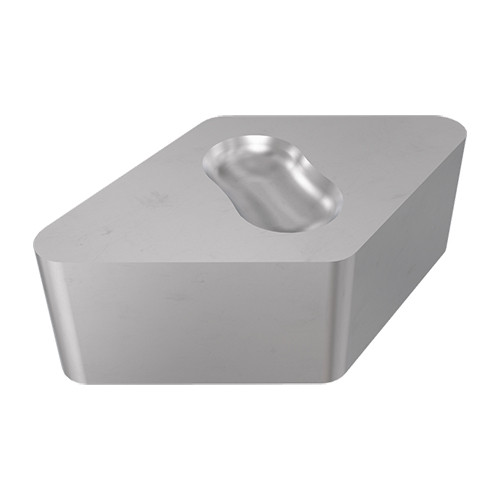

DNGX 453 T0820 IS26
| Applicable Material | | Cast Iron | | Grade | IS26 |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | DNGX | Min D.O.C. | 0.012″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 453 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.313″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Negative 55° rhombic double-sided ceramic dimple inserts for machining cast iron | Country of Origin | Japan |
Shipping Info
Package Weight
9.7
