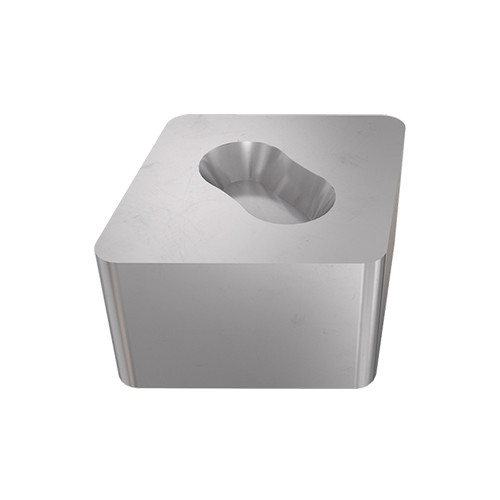

CNGX 454 T0820 IS26
| Applicable Material | | Cast Iron | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | | Min D.O.C. | 0.02″ |
| Insert Style | CNGX | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.063″ | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Insert Size | 454 | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS26 |
Product Features
| Family Description | Negative 80° rhombic ground ceramic dimple inserts for cast iron roughing | Country of Origin | Japan |
Shipping Info
Package Weight
6.3
