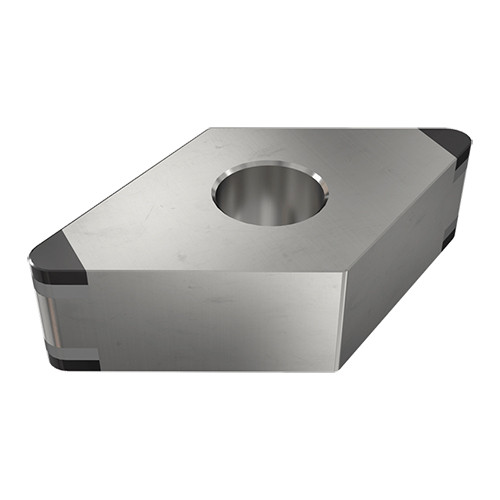

DNGA 441S-4MT BI30H
| Applicable Material | | Cast Iron | Hard Materials | | Grade | BI30H |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Fixing Hole Diameter (D1) | 0.217″ |
| Insert Style | DNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.002″ |
| Insert Size | 441 | Depth of Cut Maximum (APMX) | 0.02″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
Product Features
| Family Description | Negative 55° rhombic inserts with 2 CBN mini tips for hardened steel and cast iron | Country of Origin | Germany |
Shipping Info
Package Weight
20.6
