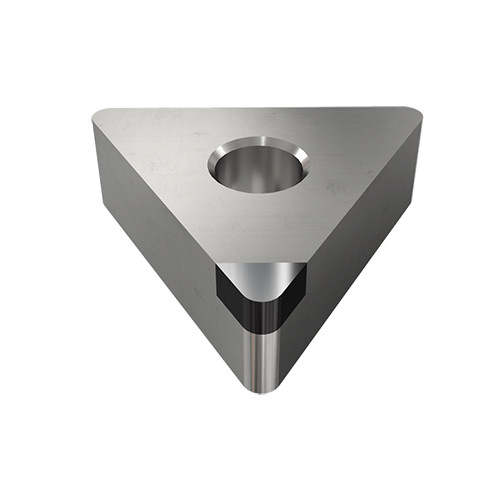

TNGA 331F ID5
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ID5 |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | TNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.002″ |
| Insert Size | 331 | Depth of Cut Maximum (APMX) | 0.039″ |
| Cutting Edge Length (L) | 0.65″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | PCD | Body Material | Carbide |
Product Features
| Family Description | Negative 60° triangular inserts with a single PCD tip for machining non-ferrous materials. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
11.8
