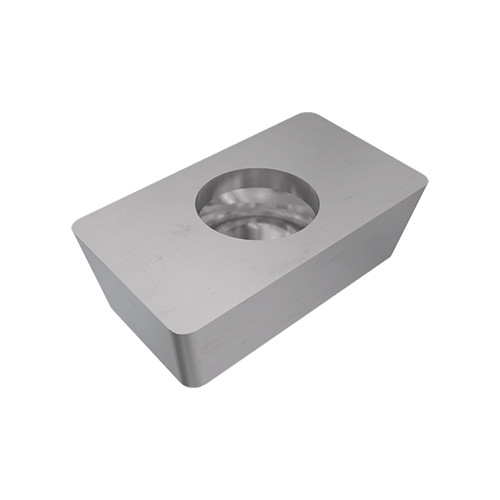

APCW 160408 T0420 IS45C
| Applicable Material | | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.648″ | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 85 Degrees | Measurement Type | Inch |
| Grade | IS45C | Body Material | Carbide |
Product Features
| Family Description | Radial clamped ceramic insert. used for high-speed machining gray and nodular cast iron. peripherally ground insert for high accuracy, provides excellent surface finish. | Country of Origin | Japan |
Shipping Info
Package Weight
3.9
