| Applicable Material | | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Facing | Shouldering | Slanted Shoulder & Chamfer | | Cutting Edge Material | Ceramic |
| Insert Length (INSL) | 1/2″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Grade | IS26 | Body Material | Carbide |

Product Features

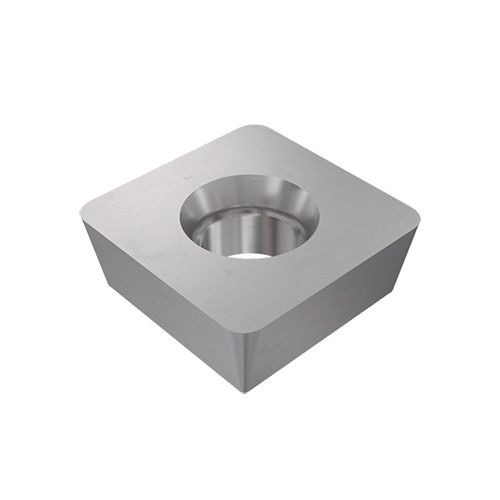

| Family Description | Ceramic square inserts for machining cast iron | Country of Origin | Japan |
