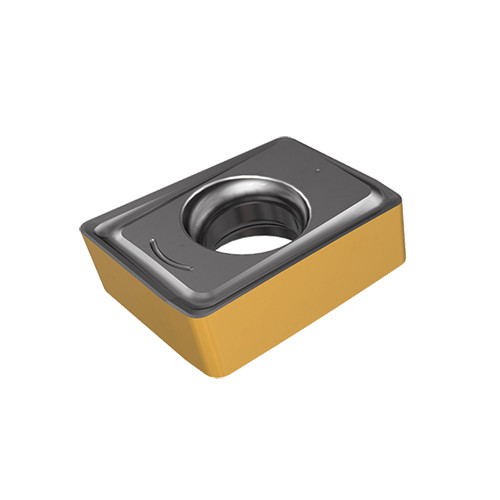

MDR ANMU 070304PNTR IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Edge Material | Carbide |

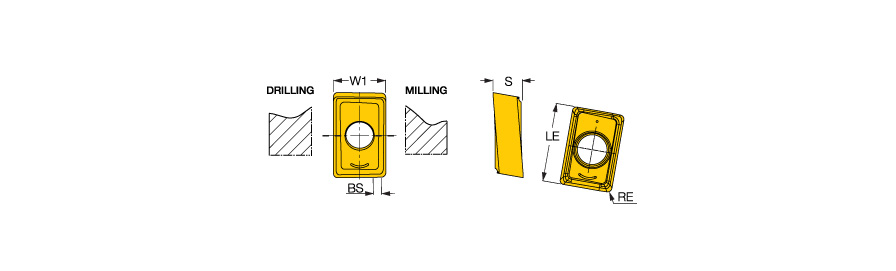

| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.205″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.106″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.032″ | Cutting Edge Effective Length (LE) | 0.307″ |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
Product Features
| Family Description | Double-sided rectangle inserts with 4 cutting edges with 2 center cutting edges for drilling and 2 peripheral cutting edges for milling | Country of Origin | Israel |
Shipping Info
Package Weight
