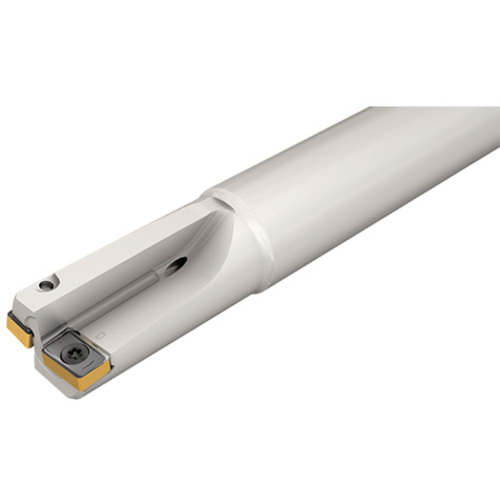

MDR D25-2-C25-AN12
Indexable End Mill; 25 mm Dia. × 11.5 mm LOC × 25 mm Shank Dia. × 150 mm OAL × 18.5 mm LU ; Round Shank ; 90 Degrees

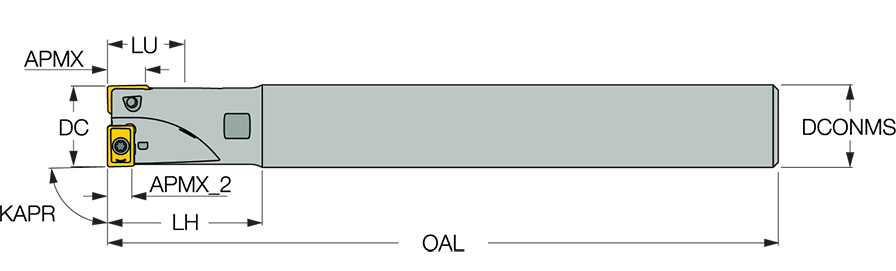

| Cutting Diameter (DC/DCX) | 25 mm | Master Insert Identification (MIID) | MDR ANMU 12... |
| Cutting Diameter (DC) | 25 mm | Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 11.5 mm | Usable Length (LU) | 18.5 mm |
| Overall Length (OAL) | 150 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
Product Features
| Family Description | Multi-function endmill cutters | Country of Origin | Israel |
| Remarks | When drilling holes deeper than 5 mm, it is recommended to use the pecking method (G83) For adaptation, click on More Info |
Shipping Info
Package Weight
515
