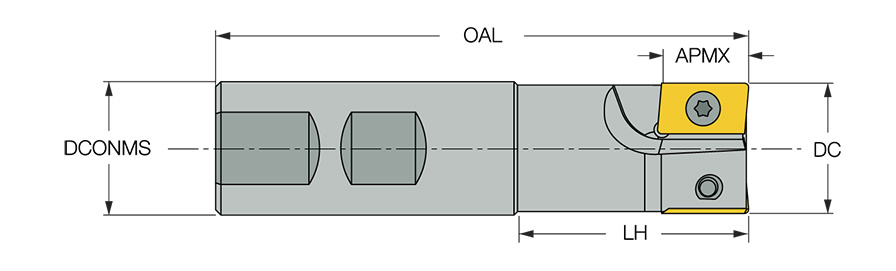

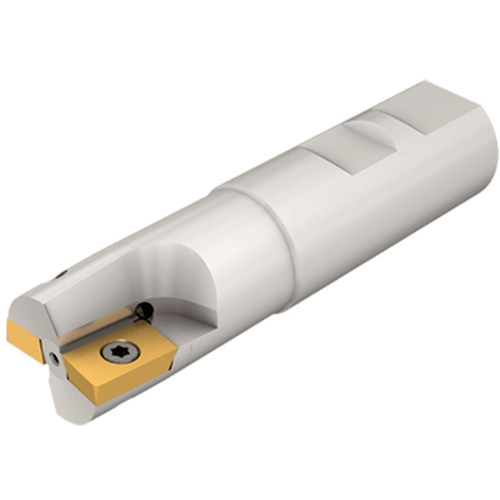

E90 D032-03-W32-AP16
Indexable End Mill; 32 mm Dia. × 14 mm LOC × 32 mm Shank Dia. × 110 mm OAL ; 2 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Functional Length (LF) | 110 mm |
| Cutting Diameter (DC) | 32 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 14 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | APCW 160408 T01020 | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 35 mm |
Product Features
| Family Description | 90° endmills carrying APCW 1604 inserts | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
733
