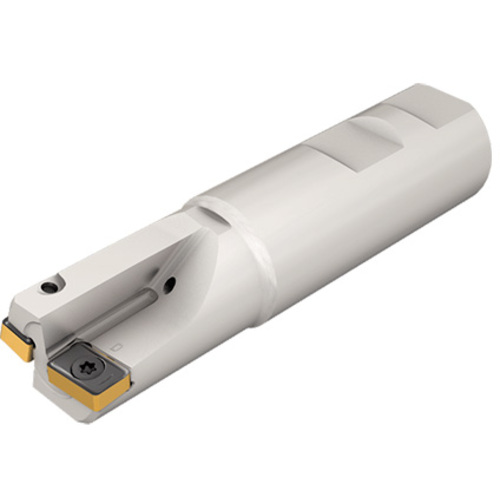

MDR D1.00-2-W1.00-AN12

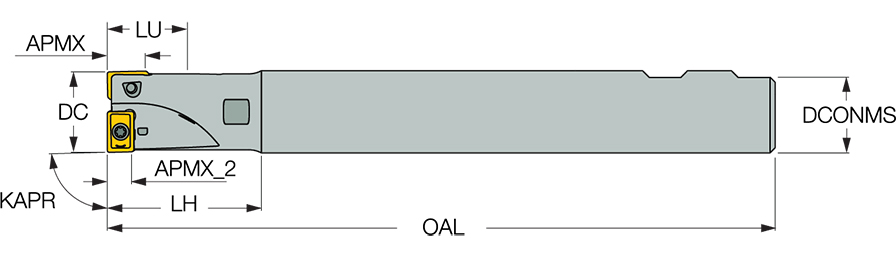

Indexable End Mill; 1″ Dia. × 0.45″ LOC × 1″ Shank Dia. × 4″ OAL × 0.73″ LU ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Master Insert Identification (MIID) | MDR ANMU 12... |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 1-1/2″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.45″ | Usable Length (LU) | 0.73″ |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Inch |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Side Plunging | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Multi-Function Endmill Cutters | Country of Origin | Israel |
| Remarks | When drilling holes deeper than .2, it is recommended to use the pecking method (G83) For user guide, click on More Info |
Shipping Info
Package Weight
0.816
