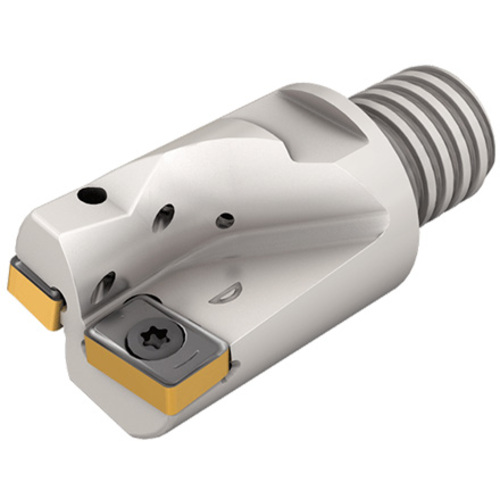

MDR D20/.79-2-MMT12-09JHP

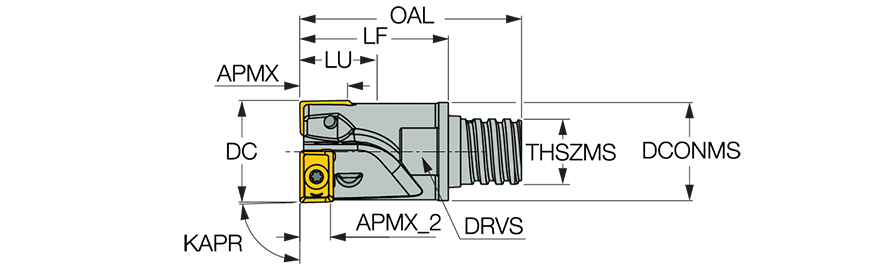

Indexable End Mill; 0.787″ Dia. × 0.3504″ LOC × 0.72″ Shank Dia. × 1.496″ OAL × 0.5906″ LU ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.787″ | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter (DC) | 0.787″ | Drive Size (DRVS) | 0.63″ |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 0.5906″ |
| Depth of Cut Maximum (APMX) | 0.3504″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 1.496″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | MDR ANMU 09 | Body Material | Steel |
| Functional Length (LF) | 0.972″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Tool Type | 90° indexable endmills |
Product Features
| Family Description | Multi-Function modular head for endmill cutters with a MULTI-MASTER threaded adaptation | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection When drilling holes deeper than .2, it is recommended to use the pecking method (G83) For adaptation, click on More Info |
Shipping Info
Package Weight
118
