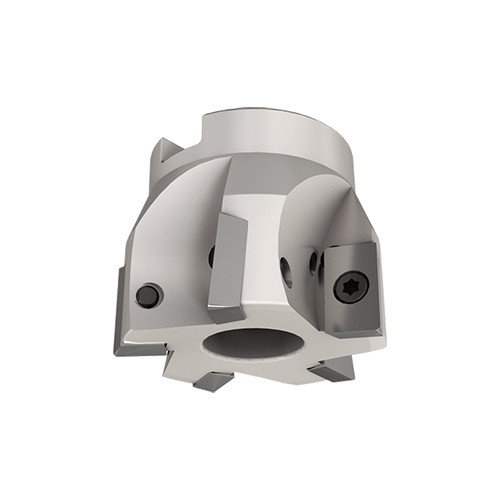

F90 D040-04-16-AP16
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 14 mm LOC ; 4 Inserts

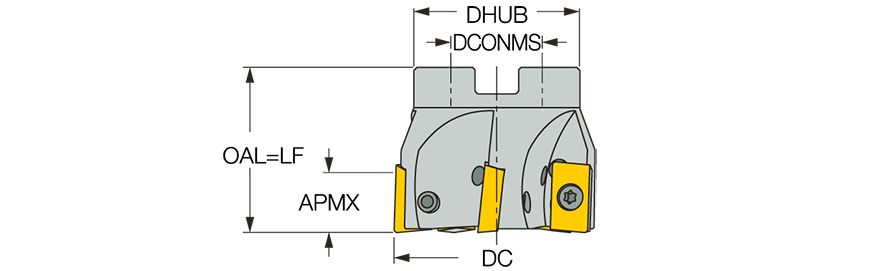

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | APCW 1604 |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 35 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying APCW 1604 inserts | Country of Origin | Germany |
Shipping Info
Package Weight
320
