F88SN D50-05-22-12
Indexable Face Mill; 51 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 12 mm LOC ; 5 Inserts

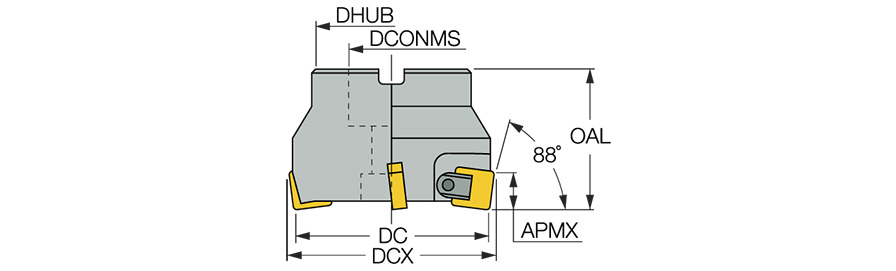

| Cutting Diameter (DC/DCX) | 51 mm | Arbor Style | A |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | SNGN 120404T |
| Cutting Diameter Maximum (DCX) | 51 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 45 mm |
Product Features
| Family Description | 88° Face mills with wedge clamp for negative SNGN 12 ceramic inserts | Country of Origin | Germany |
Shipping Info
Package Weight
1.098
