F75SN D125-13-40-12

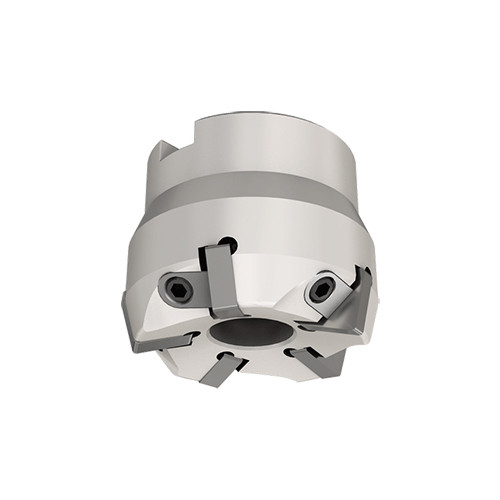

Indexable Face Mill; 132 mm Dia. × 40 mm Shank Dia. × 50 mm OAL × 12 mm LOC ; 13 Inserts

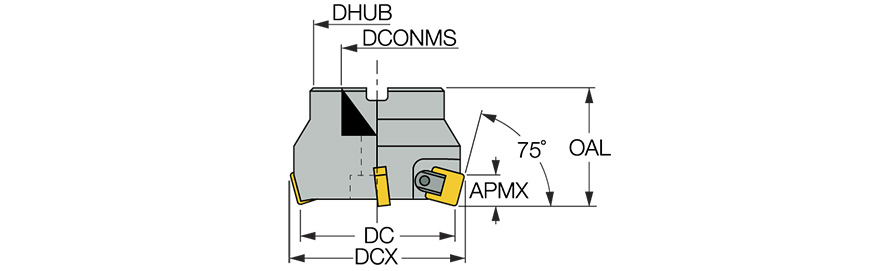

| Cutting Diameter (DC/DCX) | 132 mm | Arbor Style | A |
| Cutting Diameter (DC) | 125 mm | Master Insert Identification (MIID) | SNGN 120404T |
| Cutting Diameter Maximum (DCX) | 132 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 13 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | |
| Overall Length (OAL) | 63.4 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 83 mm | Tool Type | 70°-75° Facemills |
Product Features
| Family Description | 75° Face mills with wedge clamp for negative SNGN 12 ceramic inserts | Country of Origin | Germany |
Shipping Info
Package Weight
8.192
