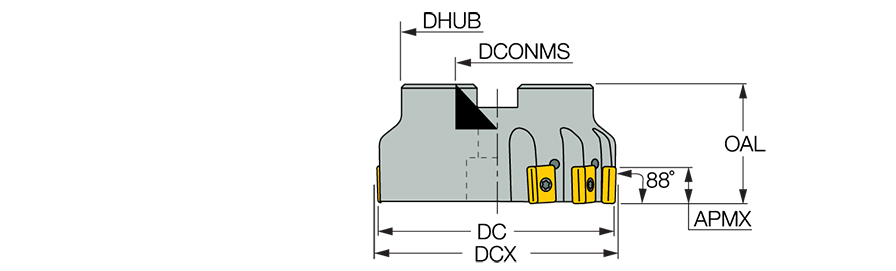

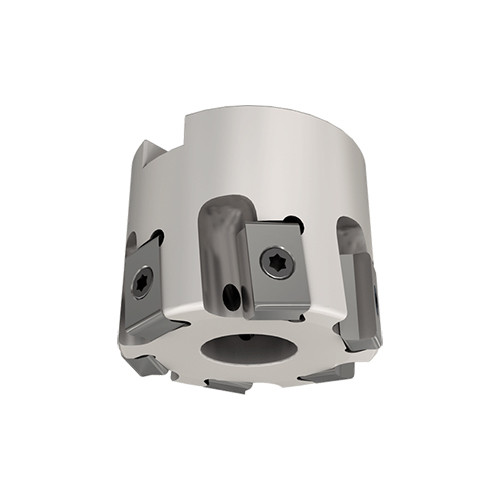

T488 FLN D125-16-40-R-16
Indexable Face Mill; 126 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 14 mm LOC ; 16 Inserts ; 88 Degrees
| Cutting Diameter (DC/DCX) | 126 mm | Arbor Style | A |
| Cutting Diameter (DC) | 125 mm | Master Insert Identification (MIID) | T488 LNHU 160608N |
| Cutting Diameter Maximum (DCX) | 126 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 16 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 88 mm | Tool Cutting Edge Angle (KAPR) | 88 Degrees |
Product Features
| Family Description | 88° face mills carrying LN..1606... tangentially clamped inserts | Country of Origin | Germany |
| Remarks | Wiper inserts are used on face mill cutters, provide improved surface finish, eliminate the use of other finishing cutters. |
Shipping Info
Package Weight
3510
