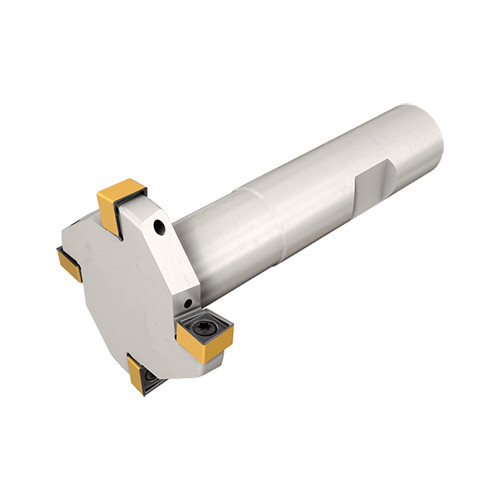

ETS D1.25-.315-W.625-XN06

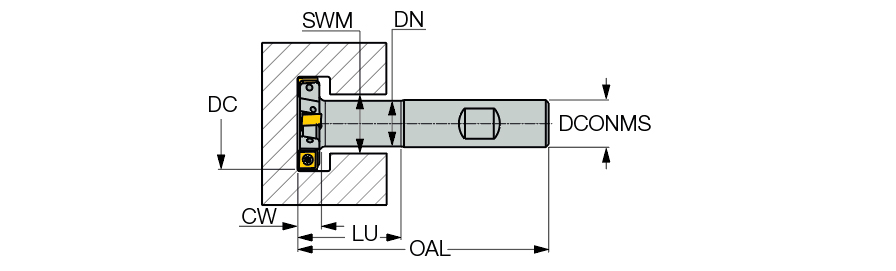

| Cutting Diameter (DC) | 1-1/4″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 0.315″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.299″ | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 3-1/2″ | Master Insert Identification (MIID) | XNMU 0603... |
| Usable Length (LU) | 1.54″ | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon |
Product Features
| Family Description | T-SLOT endmills carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
195
