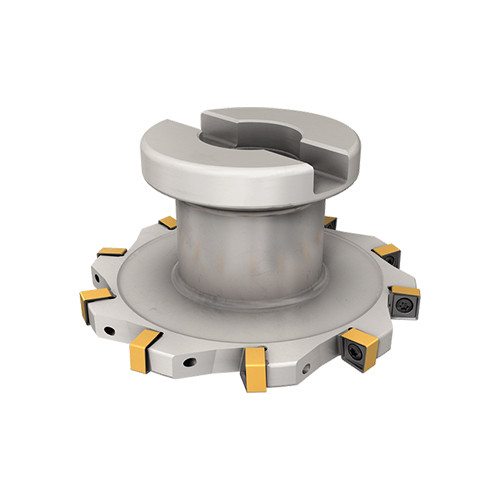

FDN D4.0-.275-08-XN06

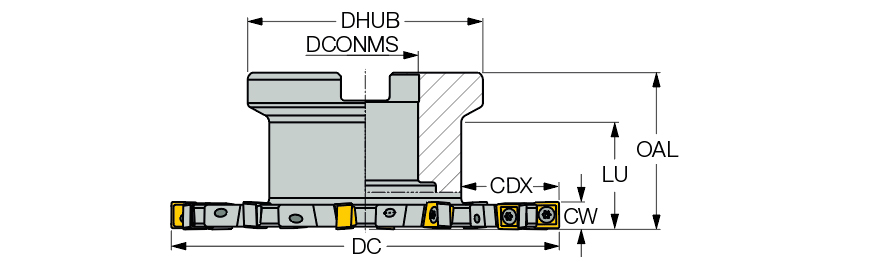

| Cutting Diameter (DC) | 4″ | Flute Count (NOF) | 8 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 1.575″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Master Insert Identification (MIID) | XNMU 0603... |
| Depth of Cut Maximum (APMX) | 0.275″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 1.024″ | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 2.252″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.275″ | Body Material | Steel |
| Usable Length (LU) | 1.102″ |
Product Features
| Family Description | Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.874
