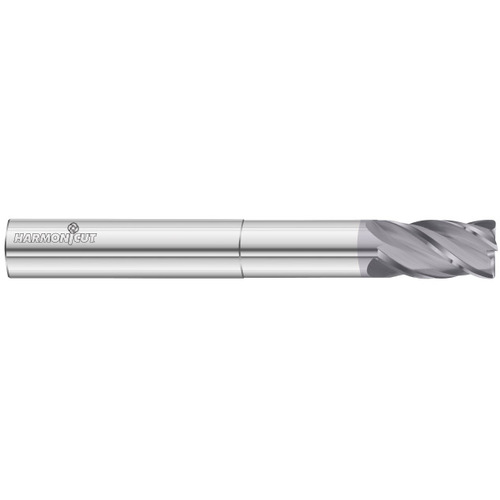

Corner Radius End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

‹ ›

Corner Radius End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

SQ End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; Series 3400

Item # FT8592437

Brand: Fullerton Tool

MFG #: 92437

Legacy Part #: FT8592437

TradeName: Harmon-i-cut

Quantity Available

Cutting Diameter (DC)

10 mm

End Shape

Corner Radius

Connection Diameter Machine Side (DCONMS)

10 mm

Usable Length (LU)

54 mm

Depth of Cut Maximum (APMX)

20 mm

Corner Radius (RE)

0.5 mm

Overall Length (OAL)

100 mm

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Long Reach

Flute Count (NOF)

Coolant Supply Property (CSP)

External

Flute Helix Angle (FHA)

Variable

Decimal Equivalent

0.3937″

Shank Type

Round

Series/List #

3400

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.34
