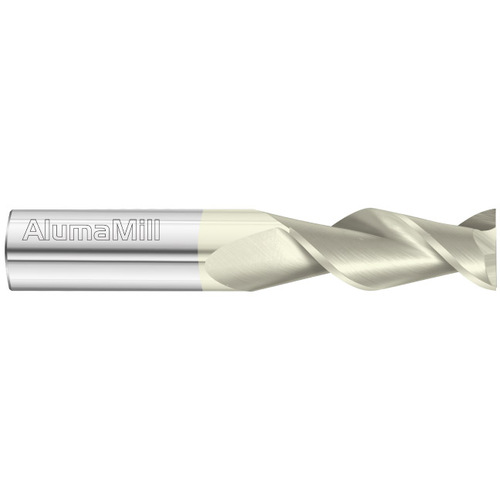

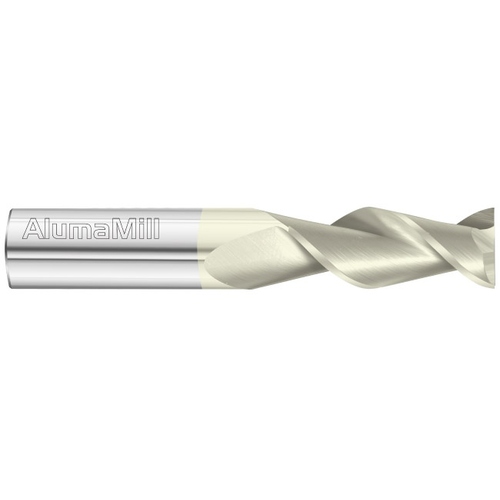

‎Square End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; FC19 ; Series 3825

‹ ›

‎Square End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; FC19 ; Series 3825

‎Square End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Series 3825

Item # FT8538098

Brand: Fullerton Tool

MFG #: 38098

Legacy Part #: FT8538098

TradeName: 3825 AlumaMill End Mill

Quantity Available

Cutting Diameter (DC)

3/8″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/8″

End Shape

Square

Depth of Cut Maximum (APMX)

1″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎2-1/2″

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC19

Decimal Equivalent

0.375″

Flute Count (NOF)

Series/List #

3825

Flute Helix Angle (FHA)

45 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End

2 Flutes

45° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.126
