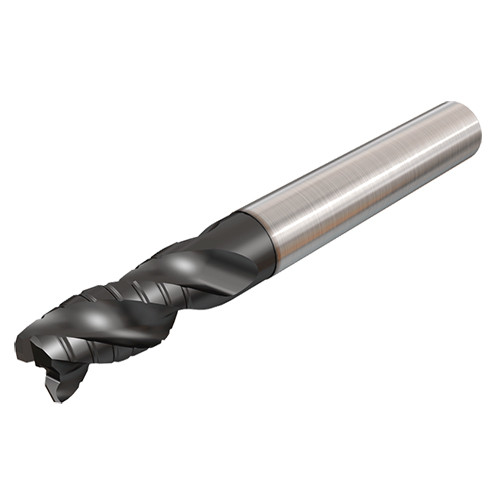

ECP-E3L 05-12/17C06S57 IC900
SQ End Mill; 5 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; 17 mm LBS ; Carbide ; AlTiN

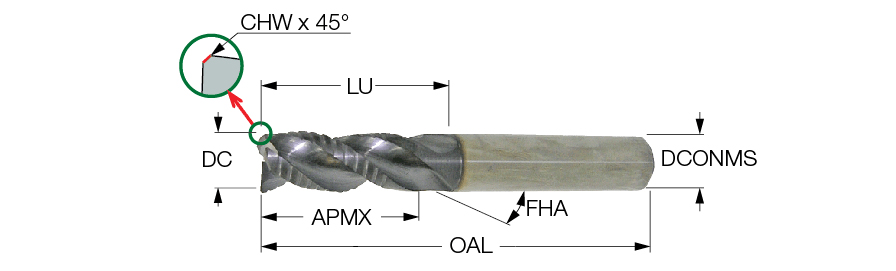

| Cutting Diameter (DC) | 5 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 12 mm | Neck Diameter (DN) | 5.03 mm |
| Overall Length (OAL) | 57 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.05 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Chamfer | Style | Solid Carbide Center Cutting Endmills 90° |
| Usable Length (LU) | 17 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Chamfer Width (CHW) | 0.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3 flute, 38° helix medium length solid carbide roughing endmills with chip splitting cutting edges for high stock removal rates. Used for machining stainless steel and high temperature alloys. | Country of Origin | Israel |
| Remarks | Most recommended for machining stainless steel. |
Shipping Info
Package Weight
0.053
