SC RUF 3FL 3/16X3/16X5/16X2 R.

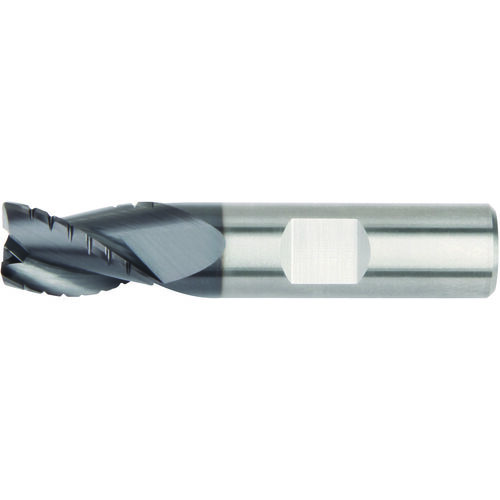

Corner Radius End Mill; 3/16″ Dia. × 5/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 0.312″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 5/16″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2″ | Grade | WP15PE |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | AlTiN | Flute Type | Chip Breaker |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|35 Degrees | Style | 82-02 SEM Side and Center |
| Shank Type | Weldon | Decimal Equivalent | 0.1875″ |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0287
