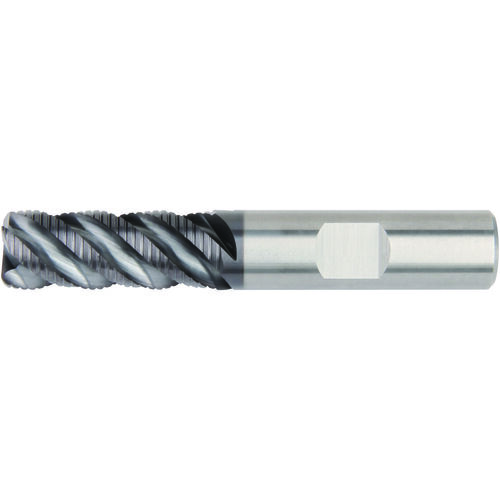

SC RUF 4FL 1/4X1/4X3/4X2.1/2 R
Corner Radius End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2-1/2″ | Grade | WP15PE |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | AlTiN | Flute Type | Flat Shallow |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Style | 82-02 SEM Side and Center |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0639
