JBGR07140200-D060 SH725

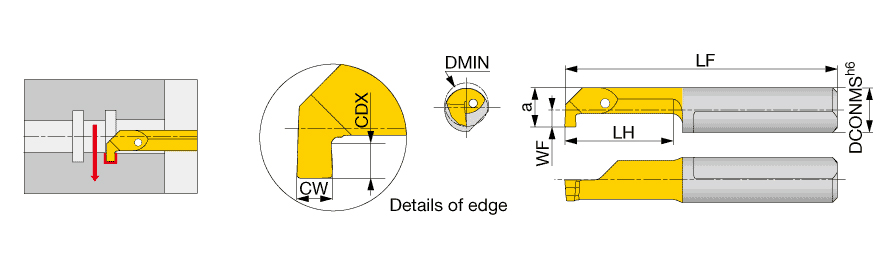

Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 1.181″ LF ; Carbide
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.236″ | Front End Width (a) | 0.21″ |
| Functional Length (LF) | 1.181″ | Functional Width (WF) | 0.071″ |
| Head Length (LH) | 0.551″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Grade | SH725 | Tool Type | Solid, Turning & Grooving |
| Application | | Internal grooving | | Measurement Type | Inch |
Product Features
| Family Description | Solid boring bars for internal grooving | Country of Origin | Israel |
| Remarks | Corner radius is less than 0.1 mm. |
