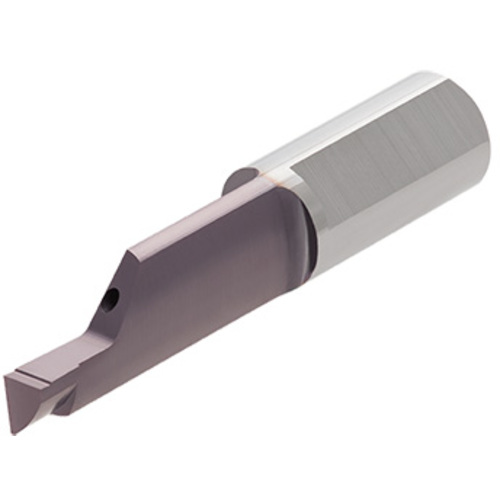

JBFR07200200-D080 SH725
Boring Bar; 0.276″ Shank Dia. × 0.315″ Min Bore Dia. × 1.417″ LF ; Carbide

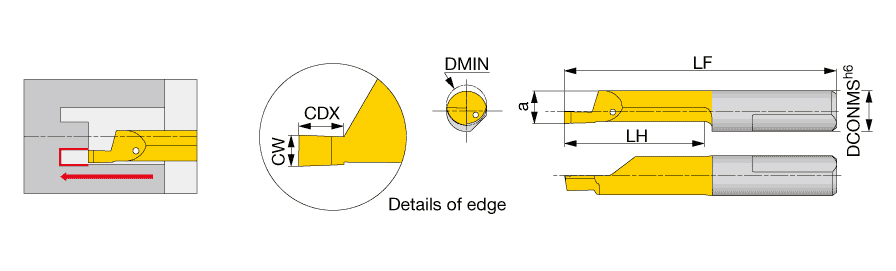

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.315″ | Front End Width (a) | 0.232″ |
| Functional Length (LF) | 1.417″ | Functional Width (WF) | 0.094″ |
| Head Length (LH) | 0.787″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Grade | SH725 | Tool Type | Solid, Turning & Grooving |
| Application | | Face grooving | | Measurement Type | Inch |
Product Features
| Family Description | Solid boring bars for face grooving | Country of Origin | Japan |
| Remarks | Corner radius is less than 0.1 mm. |
Shipping Info
Package Weight
17
