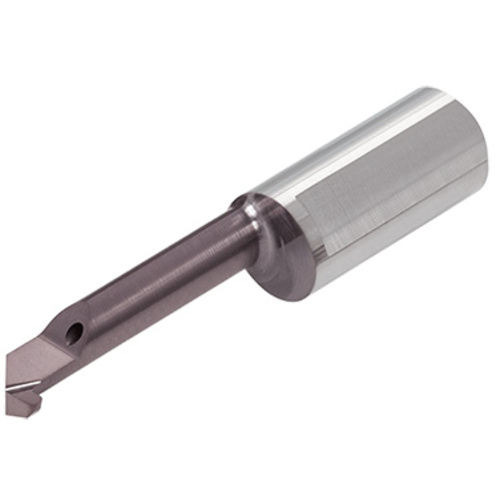

JBRR07190050-D050 SH725

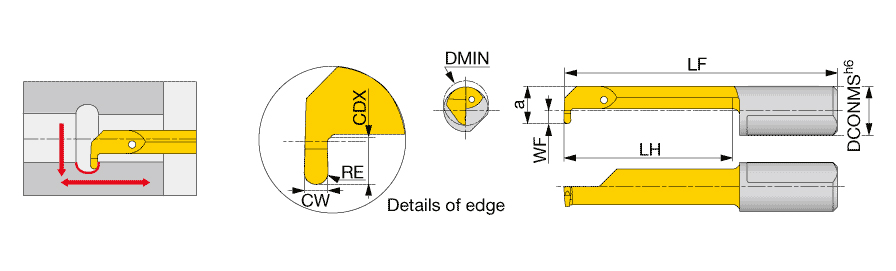

| Connection Diameter Machine Side (DCONMS) | 7 mm | Front End Width (a) | 4.4 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Functional Width (WF) | 0.9 mm |
| Functional Length (LF) | 35 mm | Body Material | Carbide |
| Head Length (LH) | 19 mm | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Radial (GAMF) | 180 Degrees |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | SH725 | Measurement Type | Metric |
| Application | | For Miniature machining | | Cutting Width (CW) | 1 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid boring bars for Boring & profiling, full radius type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
