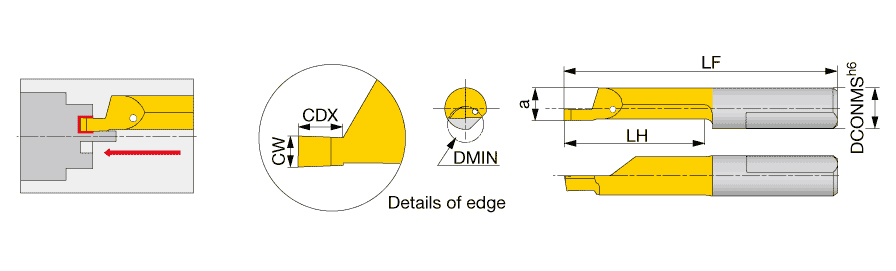

JBSR07200200-D060 SH725
| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 6 mm | Front End Width (a) | 5.2 mm |
| Functional Length (LF) | 36 mm | Functional Width (WF) | 1.7 mm |
| Head Length (LH) | 20 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid, Turning & Grooving |
| Grade | SH725 | Measurement Type | Metric |
| Application | | Face grooving | | Cutting Width (CW) | 2 mm |
Product Features
| Family Description | Solid boring bars for face grooving, for shaft machining | Country of Origin | JAPAN |
| Remarks | Corner radius is less than 0.1 mm. |
