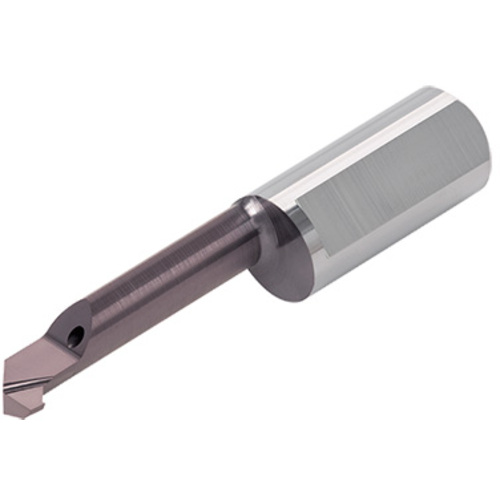

JBUR07140010-D050 SH725

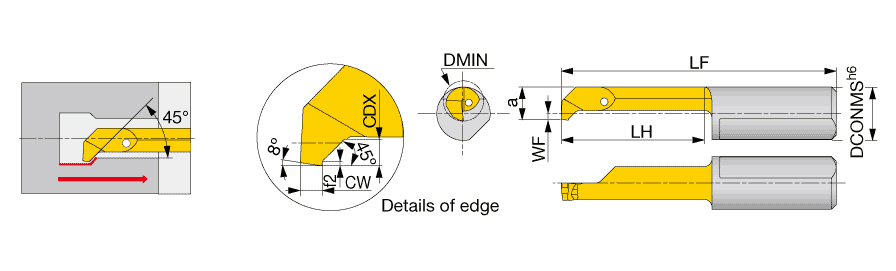

| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 5 mm | Front End Width (a) | 4.4 mm |
| Functional Length (LF) | 30 mm | Functional Width (WF) | 0.9 mm |
| Head Length (LH) | 14 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | SH725 | Measurement Type | Metric |
| Application | | For Miniature machining | | Cutting Width (CW) | 1 mm |
Product Features
| Family Description | Solid boring bars for back boring & chamfering | Country of Origin | JAPAN |
