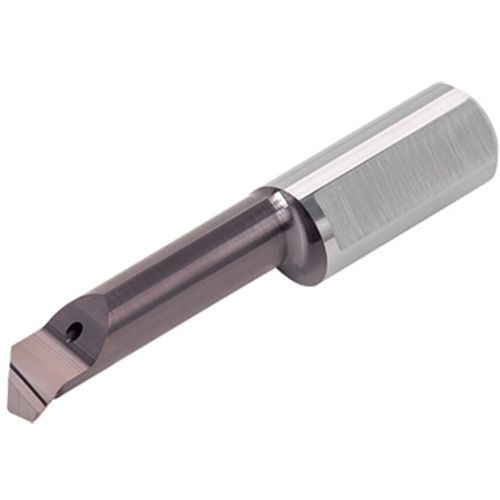

JBTR07090015-D050 SH725
Boring Bar; 0.276″ Shank Dia. × 0.197″ Min Bore Dia. × 0.984″ LF ; Carbide

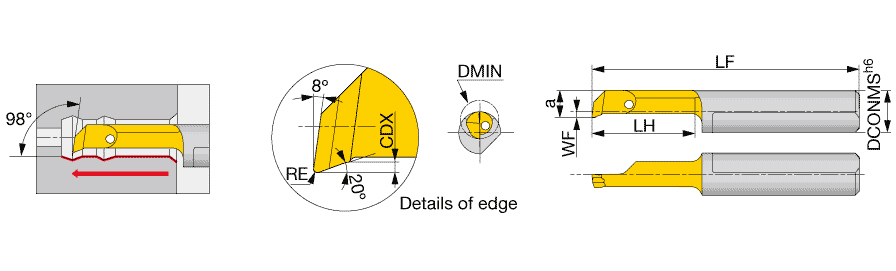

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 0.173″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Functional Width (WF) | 0.035″ |
| Functional Length (LF) | 0.984″ | Body Material | Carbide |
| Head Length (LH) | 0.354″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Radial (GAMF) | 20 Degrees |
| Grade | SH725 | Tool Type | Solid Carbide Turn Tool |
| Application | | For Miniature machining | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid boring bars for boring, profiling & chamfering | Country of Origin | Japan |
Shipping Info
Package Weight
0
