JBTR04070015-D040ST BX310

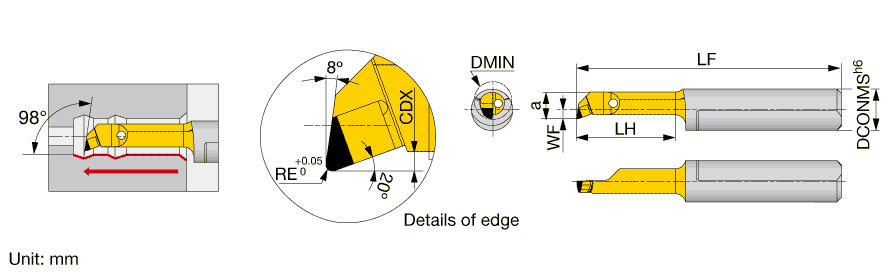

| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | For Miniature machining | |
| Minimum Bore Diameter (DMIN) | 4 mm | Applicable Material | | Hard Materials | |
| Functional Length (LF) | 23 mm | Front End Width (a) | 3.5 mm |
| Head Length (LH) | 7 mm | Functional Width (WF) | 1.5 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | Uncoated | Cutting Edge Material | PCBN |
| Grade | BX310 | Measurement Type | Metric |
Product Features
| Family Description | CBN brazed solid boring bar for boring, profiling and chamfering | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
