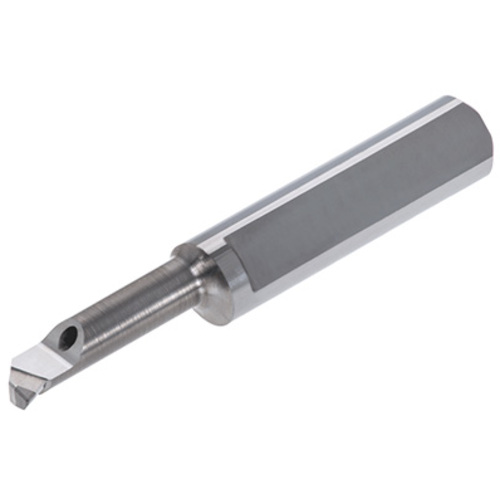

JBTR04060010-D028ST BX310
Boring Bar; 0.157″ Shank Dia. × 0.11″ Min Bore Dia. × 0.866″ LF ; PCBN

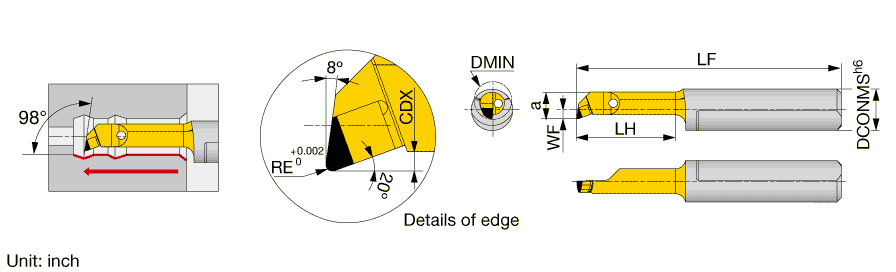

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Applicable Material | | Hard Materials | |
| Minimum Bore Diameter (DMIN) | 0.11″ | Front End Width (a) | 0.102″ |
| Functional Length (LF) | 0.866″ | Functional Width (WF) | 0.035″ |
| Head Length (LH) | 0.236″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | PCBN |
| Grade | BX310 | Measurement Type | Inch |
| Application | | For Miniature machining | |
Product Features
| Family Description | CBN brazed solid boring bar for boring, profiling and chamfering | Country of Origin | Japan |
Shipping Info
Package Weight
6
