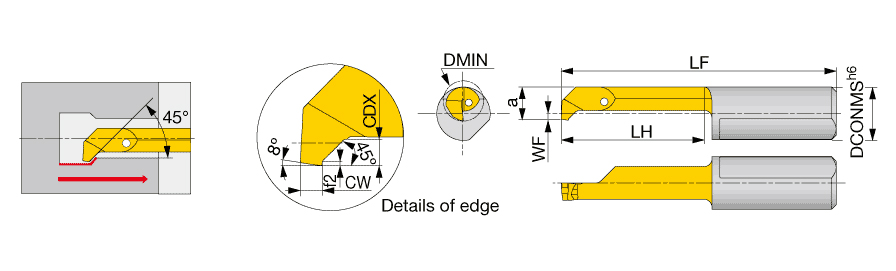

JBUR07140010-D050 SH730
Boring Bar; 0.276″ Shank Dia. × 0.197″ Min Bore Dia. × 1.181″ LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.197″ | Front End Width (a) | 0.17″ |
| Functional Length (LF) | 1.181″ | Functional Width (WF) | 0.035″ |
| Head Length (LH) | 0.551″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | SH730 | Measurement Type | Inch |
| Application | | For Miniature machining | |
Product Features
| Family Description | Solid boring bars for back boring & chamfering | Country of Origin | Israel |
Shipping Info
Package Weight
0.026
