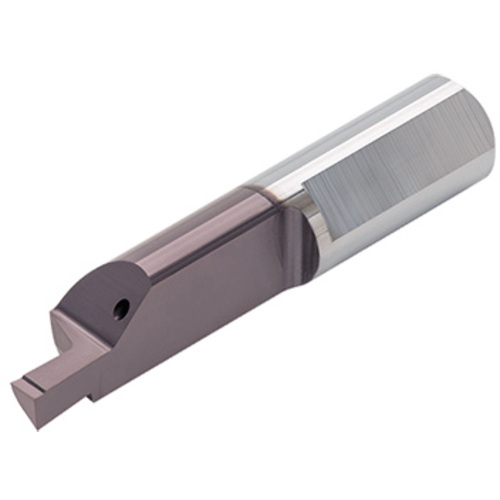

JBSR07200200-D060 SH730
Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 1.417″ LF ; Carbide ; TiAlN

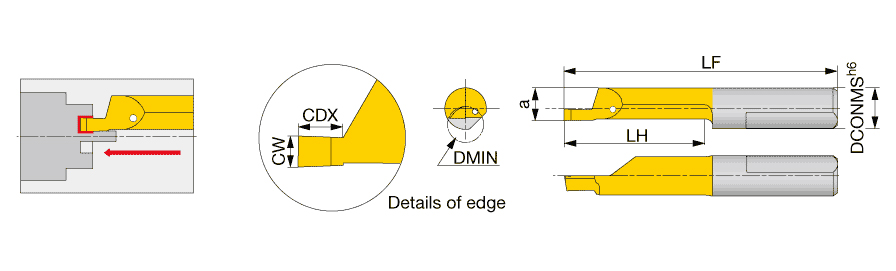

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.236″ | Front End Width (a) | 0.2″ |
| Functional Length (LF) | 1.417″ | Functional Width (WF) | 0.067″ |
| Head Length (LH) | 0.787″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid, Turning & Grooving |
| Grade | SH730 | Measurement Type | Inch |
| Application | | Face grooving | |
Product Features
| Family Description | Solid boring bars for face grooving, for shaft machining | Country of Origin | Israel |
| Remarks | Corner radius is less than 0.1 mm. |
Shipping Info
Package Weight
0.04
