JBRR07240050-D060 SH730

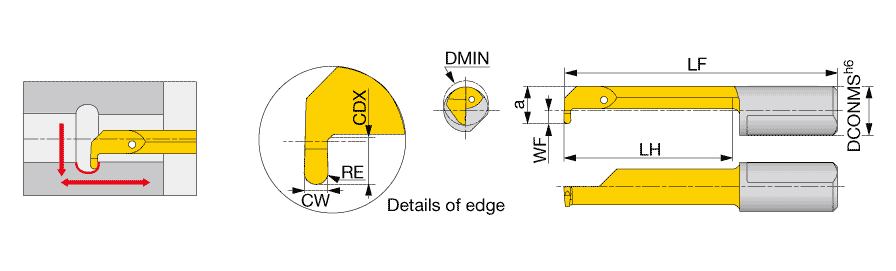

Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 1.575″ LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.236″ | Front End Width (a) | 0.21″ |
| Functional Length (LF) | 1.575″ | Functional Width (WF) | 0.071″ |
| Head Length (LH) | 0.945″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Rake Angle Radial (GAMF) | 180 Degrees |
| Grade | SH730 | Tool Type | Solid Carbide Turn Tool |
| Application | | For Miniature machining | | Measurement Type | Inch |
Product Features
| Family Description | Solid boring bars for Boring & profiling, full radius type | Country of Origin | Israel |
Shipping Info
Package Weight
0.031
