C10-STFCR2

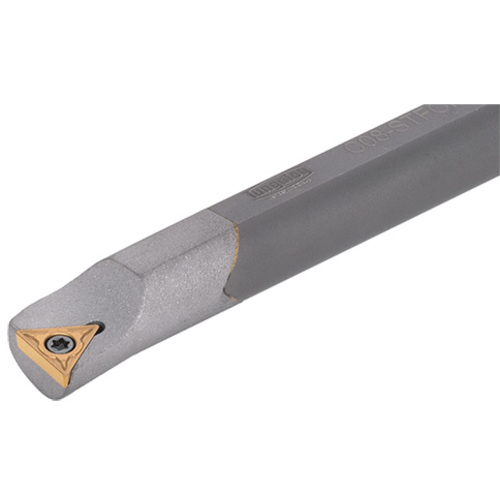

Boring Bar; 5/8″ Shank Dia. × 7/8″ Min Bore Dia. × 7″ LF

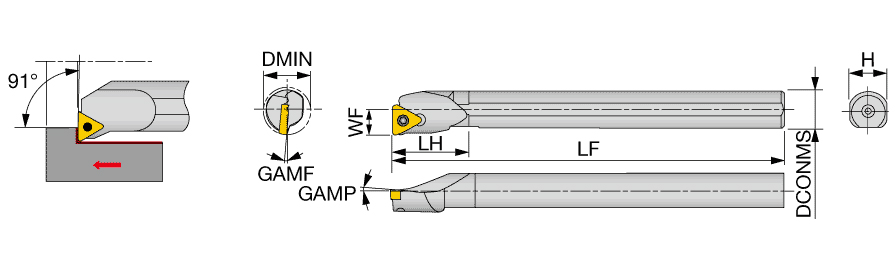

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | For Triangular insert | |
| Minimum Bore Diameter (DMIN) | 7/8″ | Functional Width (WF) | 0.515″ |
| Functional Length (LF) | 7″ | Body Material | Carbide |
| Head Length (LH) | 1-1/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw-on boring bar for Posi triangle insert with 7 deg clearance | Country of Origin | USA |
| Remarks | When using a right or left hand insert, the left hand insert (L) is used for the right hand toolholders (STFCR** type). These products are for the North American Region only. |
Shipping Info
Package Weight
0.000
