A16-SCLCR3

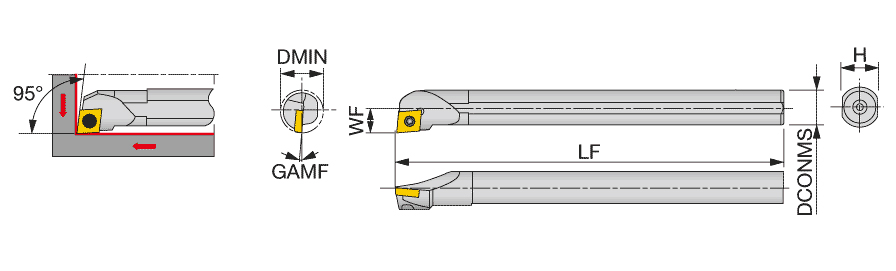

Boring Bar; 1″ Shank Dia. × 1.28″ Min Bore Dia. × 7″ LF
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | For 80deg Rhombic insert | |
| Minimum Bore Diameter (DMIN) | 1.28″ | Functional Width (WF) | 0.64″ |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar for Posi 80 deg rhombic insert with 7 deg clearance | Country of Origin | USA |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). These products are for the North American Region only. |
Shipping Info
Package Weight
0
