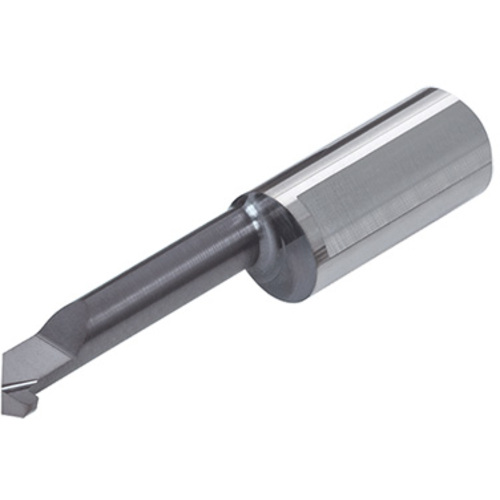

TBRR07290050-D068 SH725
Boring Bar; 7 mm Shank Dia. × 6.8 mm Min Bore Dia. × 45 mm LF ; Carbide ; TiAlN

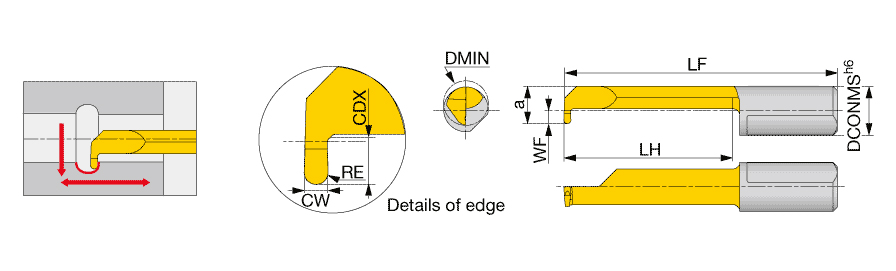

| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Front End Width (a) | 6.3 mm |
| Functional Length (LF) | 45 mm | Functional Width (WF) | 2.8 mm |
| Head Length (LH) | 29 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Cutting Width (CW) | 1 mm |
| Application | | For Miniature machining | |
Product Features
| Family Description | TinyMiniTurn solid boring bar for boring and profiling. | Country of Origin | Israel |
