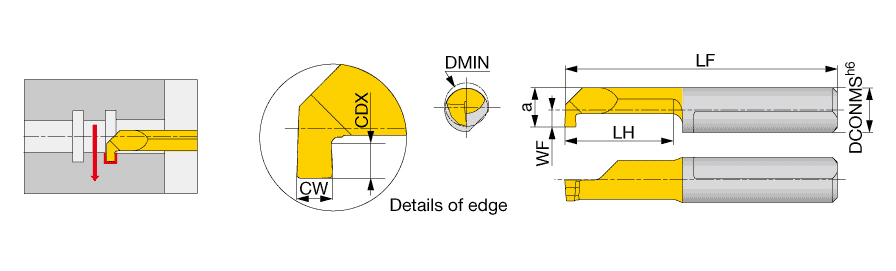

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.236″ | Front End Width (a) | 0.21″ |
| Functional Length (LF) | 0.984″ | Functional Width (WF) | 0.071″ |
| Head Length (LH) | 0.354″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Grade | SH725 | Tool Type | Solid, Turning & Grooving |
| Application | | Internal grooving | | Measurement Type | Inch |
Product Features

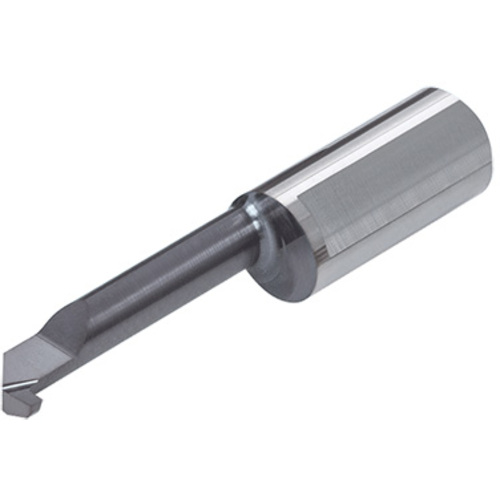

| Family Description | TinyMiniTurn solid boring bar for internal grooving. | Country of Origin | Japan |
| Remarks | Corner radius is less than 0.1 mm. |
