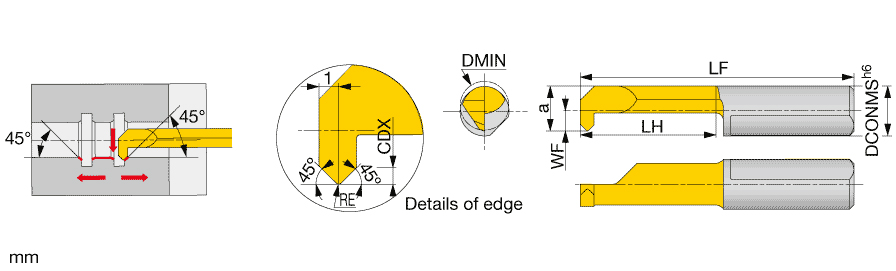

| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | | For Miniature machining | |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Functional Length (LF) | 35 mm | Front End Width (a) | 6.3 mm |
| Head Length (LH) | 19 mm | Functional Width (WF) | 2.8 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | SH725 | Measurement Type | Metric |
Product Features

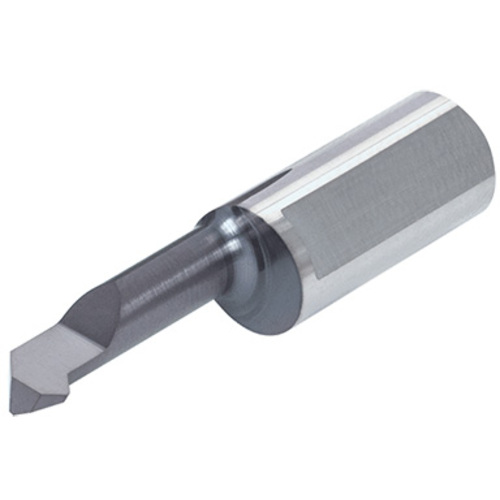

| Family Description | TinyMiniTurn solid boring bar for boring and 45 degree chamfering. | Country of Origin | JAPAN |
