TBPR07140015-D050 SH725

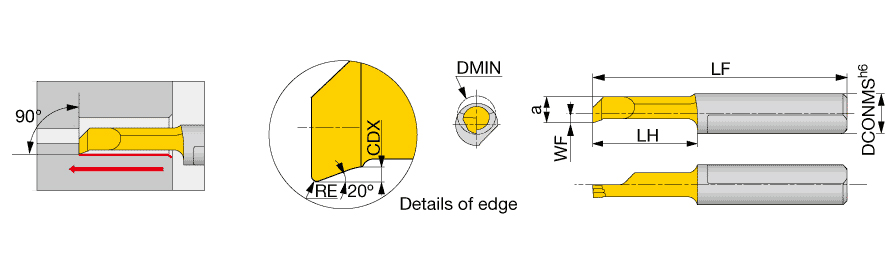

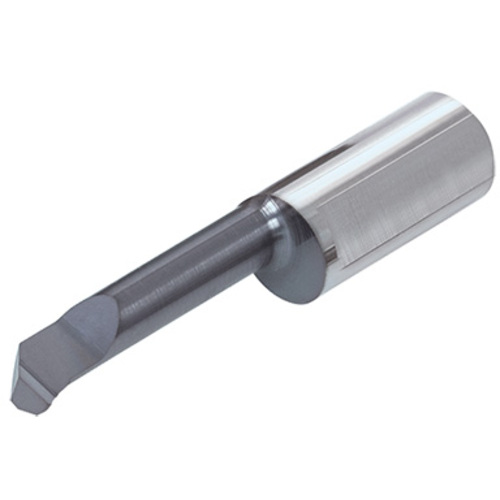

Boring Bar; 7 mm Shank Dia. × 5 mm Min Bore Dia. × 30 mm LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | | For Miniature machining | |
| Minimum Bore Diameter (DMIN) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Functional Length (LF) | 30 mm | Front End Width (a) | 4.4 mm |
| Head Length (LH) | 14 mm | Functional Width (WF) | 0.9 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | SH725 | Measurement Type | Metric |
Product Features
| Family Description | TinyMiniTurn solid boring bar for boring and chamfering. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
