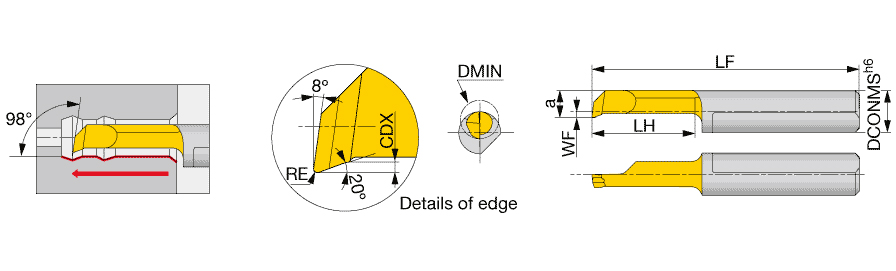

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 0.197″ | Front End Width (a) | 0.173″ |
| Functional Length (LF) | 0.984″ | Functional Width (WF) | 0.035″ |
| Head Length (LH) | 0.354″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Grade | SH725 | Measurement Type | Inch |
| Application | | For Miniature machining | |
Product Features

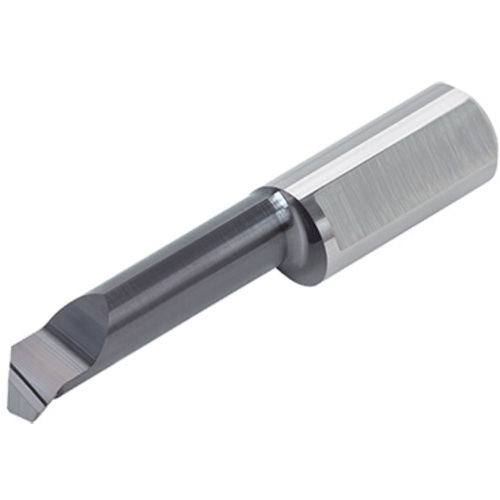

| Family Description | TinyMiniTurn solid boring bar for boring, profiling, and chamfering. | Country of Origin | Japan |
