TBTR04040005-D020 SH725

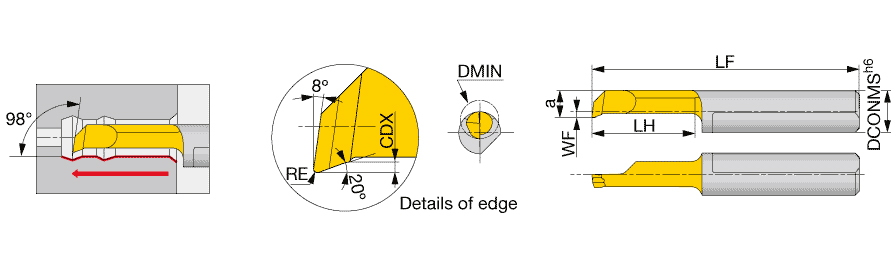

Boring Bar; 4 mm Shank Dia. × 2 mm Min Bore Dia. × 20.5 mm LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | For Miniature machining | |
| Minimum Bore Diameter (DMIN) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Functional Length (LF) | 20.5 mm | Front End Width (a) | 1.7 mm |
| Head Length (LH) | 4 mm | Functional Width (WF) | -0.3 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | SH725 | Measurement Type | Metric |
Product Features
| Family Description | TinyMiniTurn solid boring bar for boring, profiling, and chamfering. | Country of Origin | JAPAN |
