CAFL-6T25-250400

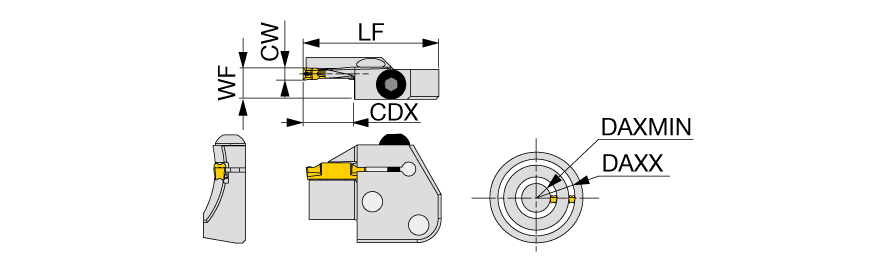

| Cutting Width (CW) | 0.236″ | Minimum Bore Diameter (DMIN) | 9.843″ |
| Cutting Direction (HAND) | Left Hand | Tool Type | Face Turning & grooving Tools |
| Overall Length (OAL) | 2.165″ | Body Material | Steel |
| Work Piece Parting Diameter Maximum (CUTDIA) | 15.748″ | Functional Width (WF) | 0.413″ |
| Application | | Face grooving | | Measurement Type | Inch |
Product Features
| Family Description | Blades for face grooving & turning | Country of Origin | S.Korea |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. Use the right hand insert for the right hand holder with DTF insert. For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". Torque: Recommended torque (Nm) for clamping Not compatible with TungModularSystem |
Shipping Info
Package Weight
0.238
Related Documentation

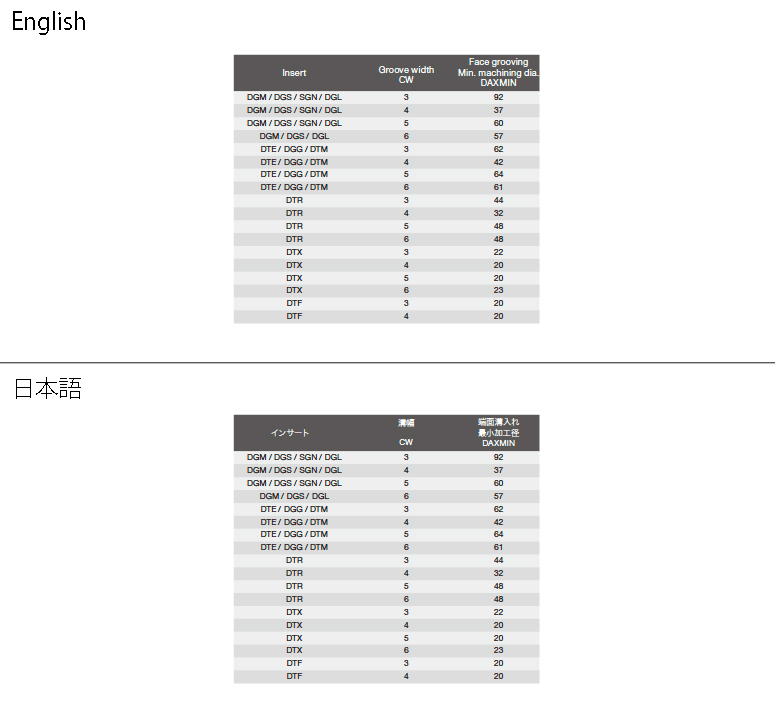

Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
