40S5580L
| Shank Width (B) | 0.984″ | Application | | Face grooving | |
| Shank Height (H) | 0.984″ | Minimum Bore Diameter (DMIN) | 2.165″ |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Overall Length (OAL) | 6.004″ | Functional Width (WF) | 1.26″ |
| Work Piece Parting Diameter Maximum (CUTDIA) | 3.15″ | Measurement Type | Inch |
Product Features

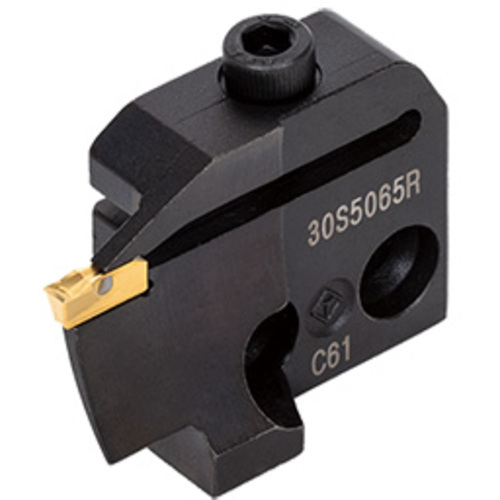

| Family Description | Blades of My-T toolholders CGWSR/L-#S/D & CGWTR/L-#S/D for face grooving & turning | Country of Origin | Japan |
| Remarks | There are 2 shank type of CGWSR/L and CGWTR/L. See MoreInfo. CGWSR/L Shank : The right hand blade set(...R) is used with right hand shank(CGWSR...) and the left hand blade set(...L) is used with left hand shank(CGWSL...). CGWTR/L Shank : The left hand blade set(...L)is used with right hand shank(CGWTR...) and the right hand blade set(...R)is used with left hand shank(CGWTL...). |
Shipping Info
Package Weight
0.243
