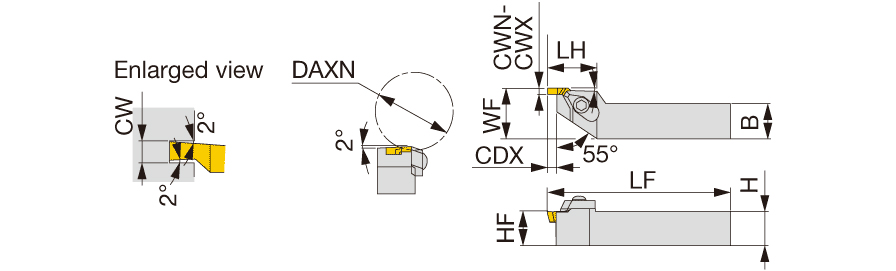

GX-2525LF
| Shank Width (B) | 25 mm | Minimum Bore Diameter (DMIN) | 55 mm |
| Shank Height (H) | 25 mm | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 32 mm |
| Application | | Face grooving | | Measurement Type | Metric |
| Head Length (LH) | 35 mm |
Product Features
| Family Description | Toolholders for face grooving | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (XNR) is used for the left hand toolholders (GX ...LF) , and the left hand insert (XNL) is used for the right hand toolholders (GX ...RF). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.706
