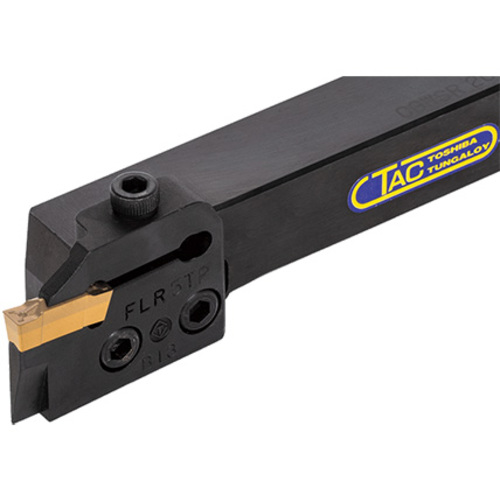

CGWSR2020-FLR5TP

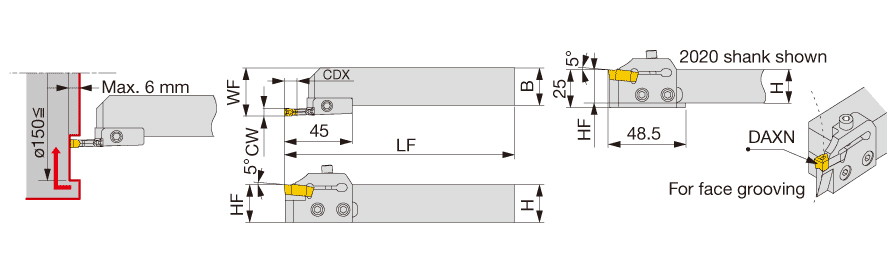

| Shank Width (B) | 20 mm | Head Length (LH) | 48.5 mm |
| Shank Height (H) | 20 mm | Minimum Bore Diameter (DMIN) | 150 mm |
| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Overall Length (OAL) | 152 mm | Functional Width (WF) | 27 mm |
| Application | | Face grooving | | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for face grooving & turning | Country of Origin | JAPAN |
| Remarks | When ordering, Shank and blade assembly designation or Shank and Blade set are required. When using a right or left hand blade set, the right hand blade set is used with right hand shank and the left hand blade set is used with left hand shank. Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.129
