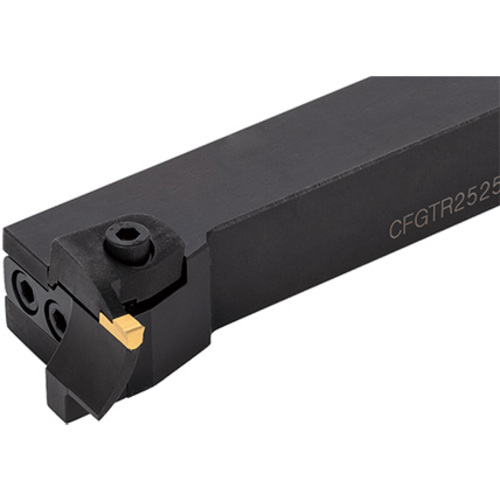

CFGTR2525-4DB
| Shank Width (B) | 25 mm | Head Length (LH) | 27.5 mm |
| Shank Height (H) | 25 mm | Minimum Bore Diameter (DMIN) | 40 mm |
| Cutting Width (CW) | 4 mm | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Overall Length (OAL) | 146 mm | Functional Width (WF) | 54 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm | Measurement Type | Metric |
| Application | | Face grooving | |
Product Features
| Family Description | Perpendicular toolholders for face grooving | Country of Origin | JAPAN |
| Remarks | Right hand toolholders are used in regular rotation. Left hand toolholders are used in reverse rotation. Right hand spare parts are included in right hand toolholders. |
Shipping Info
Package Weight
1.795
