CFGSL2525-3SA

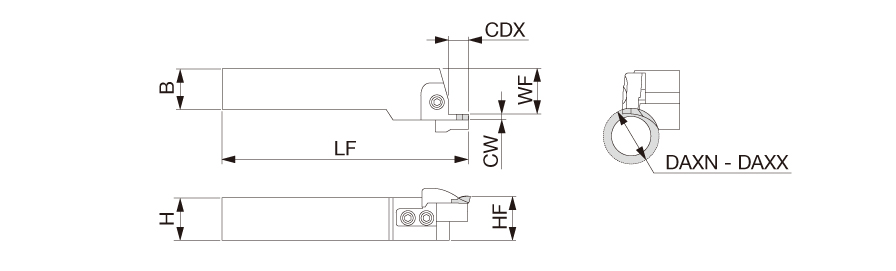

| Shank Width (B) | 25 mm | Head Length (LH) | 47.75 mm |
| Shank Height (H) | 25 mm | Minimum Bore Diameter (DMIN) | 30 mm |
| Cutting Width (CW) | 3 mm | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 29 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 40 mm | Measurement Type | Metric |
| Application | | Face grooving | |
Product Features
| Family Description | Toolholders for face grooving | Country of Origin | JAPAN |
| Remarks | Right hand toolholders are used in regular rotation. Left hand toolholders are used in reverse rotation. Right hand spare parts are included in right hand toolholders. |
Shipping Info
Package Weight
1.658
